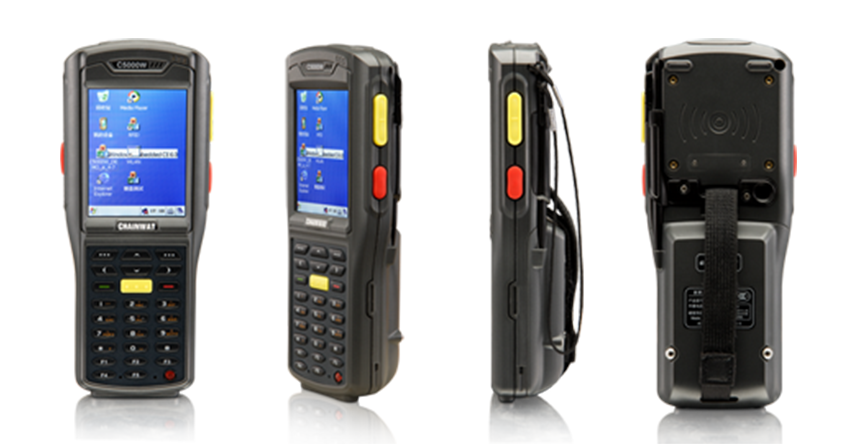

SKJ-1-223SZC portable terminal

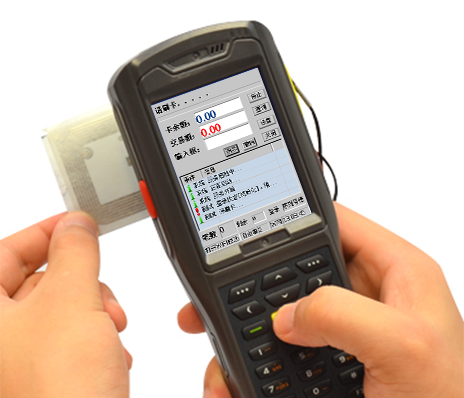

SKJ-1-223SZC portable mobile data terminal integrates RFID read-write, wireless communication and other functions, and can support two communication modules and two read-write modules at the same time. The machine can be embedded at the same time consumer software modules and attendance software modules. It can meet the daily use under a variety of environments; its rugged structure conforms to the shell of IP64 industrial grade sealing standard. It can support GPRS / WIFI / BlueTooth and other communication transmission modes.

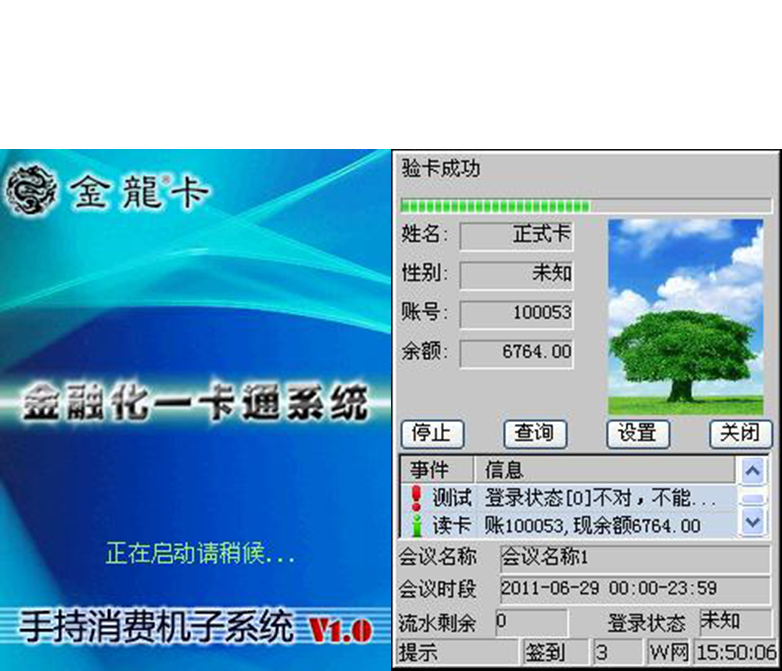

界面展示 Page presentation

  • Performance parameters
  • Other Parameters
  • CPU: Samsung ARM920T@533MHz
  • RAM: 128MB RAM / 1GB Flash memory
  • Memory space expansion: support 8G Micro SD (TF) card at maximum
  • Touch display screen: color 3.2 inch QVGA imitation glass durable touch screen with TFT-LCD, 65K color, and 240X320 (QVGA size)
  • Standard configuration handwriting pen, handwriting, touch input or keyboard input, and expansion slot: SIM card, SAM card and Micro SD (TF) card
  • Size: 186.5 * 75 * 38.9mm (4,000mAH battery configuration)
  • Weight: 400g
  • Operating system: Microsoft Windows CE 6.0
  • Supported languages: C ++, C #, VB.NET and JAVA
  • JAVA programming supports JDK 5.0 or higher
  • Development tool: Visual Studio 2005/2008
