Interaction for box & bullet cameras - a weapon for large scene monitoring

The scenes and details for the monitoring system are the problems difficult to solve all the time. For “high-definition panoramic camera”, although it can see the whole scene, it can not control the details; for “high-definition intelligent spherical camera”, it can see the details by virtue of the ball machine zoom, but misses the whole scene. For how to fully control the whole scenes and all details, the systemof interaction for box & bullet cameras well solves the problem of seeing the whole scene and automatic tracking & amplification for details simultaneously. The system has a wide range of applications, and enjoys better performance in urban roads, urban high grounds, squares, ports, wharfs, urban crossroads, entrances and exits of key units, road junctions, parks and other large scenes.

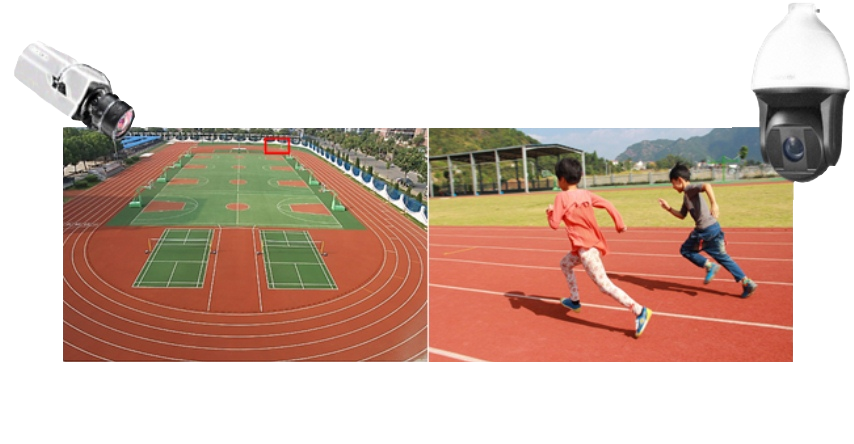

Completely solve the contradictions where whole scenes and details can not be obtained simultaneously

  • Product features
  • Technical parameters
  • Front-end linkage, without the processing equipment Video linkage and video tracking are achieved by smart bolt and smart ball machine.

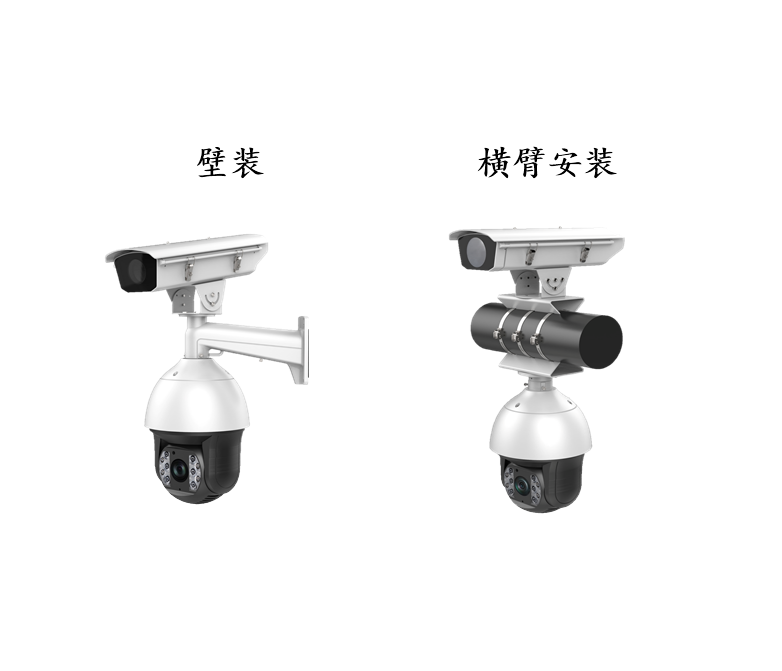

  • Simple structure and easy installation; the “interaction for box & bullet cameras” system consists of a bolt, a ball machine and dedicated bracket.
  • Support a variety of linkage ways; support three linkage ways of manual tracking, automatic tracking and click linkage.
  • Support multi-target polling tracking; support the detection of multiple behaviors, such as regional intrusion, cross-border detection and other intelligent detection functions.
  • Minimum illumination: color 0.002Lux@ (F1.2, AGC ON)
  • Minimum illumination: black and white 0.0002Lux@ (F1.2, AGC ON)
  • Shutter: 1/25 seconds to 1/100,000 seconds
  • Lens interface type: C/CS interface
  • Automatic diaphragm: DC drive
  • Day and night conversion mode: ICR infrared filter type
  • Wide dynamic range: 120dB
  • Video compression standard: H.264/MJPEG
  • Compression output code rate: 32 Kbps~16M bps
  • Image format: JPEG
  • Maximum image size: 1920*1080
  • Image settings: corridor mode, saturation, brightness, contrast, white balance, gain, and 3D noise reduction
  • Image function: support penetrating fog, backlight compensation and electronic anti-shake
